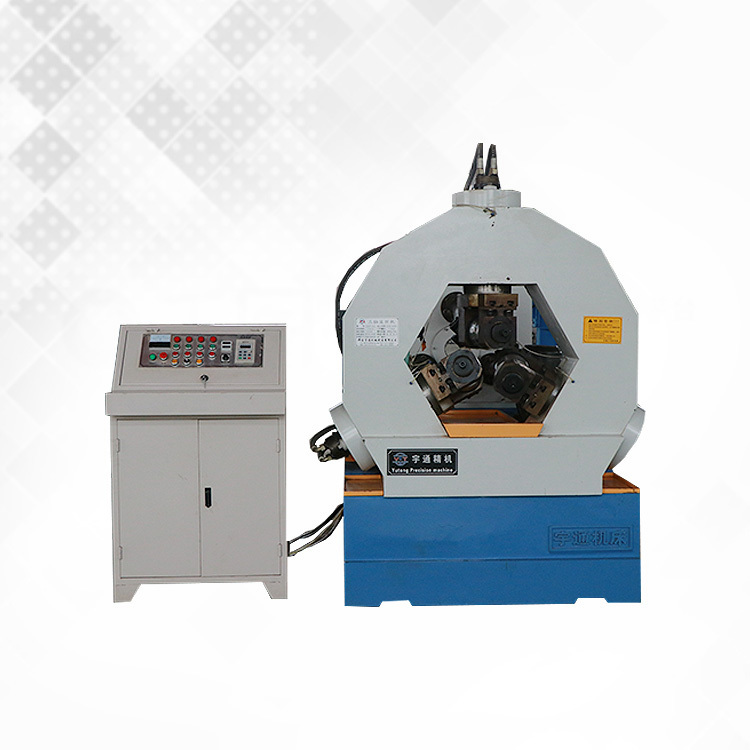

ZC28-12.5 Type Tri-axial Thread Rolling Machine

Product

ZC28-12.5 Type Tri-axial Thread Rolling Machine

ZC28-12.5 three-axis thread-rolling machine, product characteristics: This machine is a kind of equipment which uses metal to produce plastic deformation under pressure. It uses three roller wheels with 120 degrees angle to process workpiece threads. It is especially suitable for rolling thin-walled workpieces and other heterosexual workpieces.
产品描述

Product Name:ZC28-12.5 Type Tri-axial Thread Rolling Machine

Technical Parameters:



Maximum Rolling Force

200KN

Wall thickness of the Processing Workpiece

Not less than 2mm

Rolling Material Diameter

Φ30-Φ100mm

Length Limits

No Limits (Additional Protection)

Roller outter Diameter

Φ150-Φ210mm

Active forceActive force

11kw-6

Roller inner Diameter

Φ75mm

Hydraulic Power

3.175kw

Maximum Roller Thickness

Φ120mm

Cooling Power

125w

Spindle Inclination Angle

±3°

Weight

3900kg±50kg

Active Spindle Feed Rate

20mm/s

Dimensions

2500×1500×2100mm
