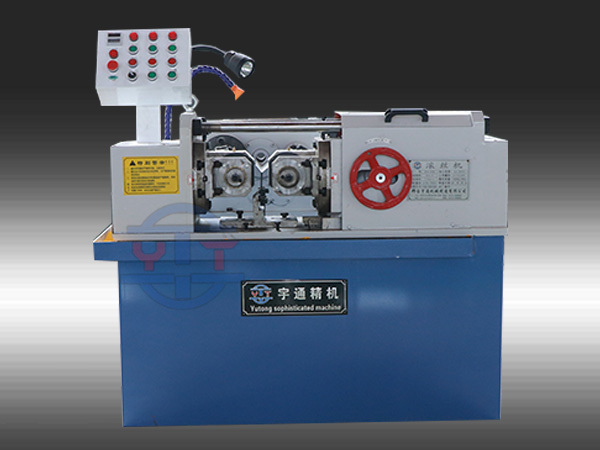

Z28-40B Type Thread Rolling Machine

Product

Z28-40B Type Thread Rolling Machine

Product Features: This machine applies to roll and mold straight grain, screw thread and cross grain with a diameter of 5-30mm in cold state. It can process fixed thread and through thread (gear rack) when assembled with spiral rollers. This machine, featuring a reasonable structure, simple operation and reliable quality, is an ideal device producing non-standard thread and standard parts (bolts).
产品描述

Product Name: Z28-40B Type Thread Rolling Machine

Technical Parameters:

Max Roll pressure

80KN

Thread length

No Limit (Additional Protection)

Diameter

Radial feed

Φ3-Φ30mm

Spindle Speed

34、43、

57、72(r/min)

Axial feed

Φ3-Φ22mm

Roller diameter

Outer diameter

Φ120-Φ170mm

Active Force

4.0kw-4

Inner diameter

Φ54mm

Hydraulic Power

2.2kw-4

Maximum thickness

100mm

Cooling Power

90w

Spindle Inclination Angle

±3°

Total Weight

1000kg±50kg

Spindle Center Distance

120-240mm

Dimensions

1480×1500×1050mm
