Z28-150 Type Thread Rolling Machine

Product

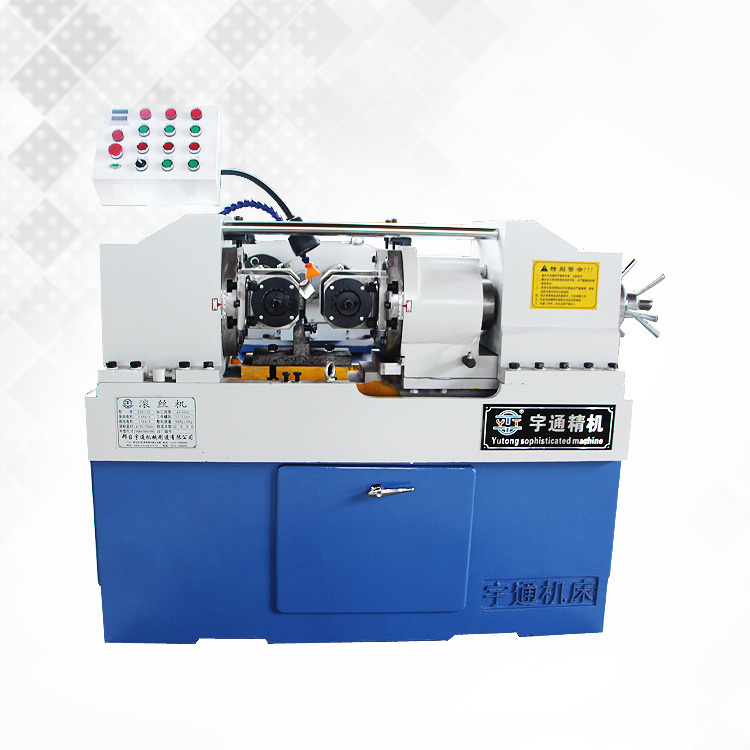

Z28-150 Type Thread Rolling Machine

Product Features:Z28-150 type thread rolling machine is mainly used for rolling various types of precision external thread, high-strength standard parts and anchor bolts and T-shaped screws and other workpieces with larger screw pitch.

产品描述

Product Name:Z28-150 Type Thread Rolling Machine

Technical Parameters:

Maximum Rolling Force	180KN		Spindle Speed	36、47、60、78（r/min）
Diameter	Radial feed	Φ3-Φ50mm	Activities spindle feed rate	5mm/s
Diameter	Axial feed	Φ3-Φ42mm	Activities spindle feed rate	5mm/s
Roller diameter	Outer diameter	Φ120-Φ170mm	Length Limits	No Limits (Additional Protection)
	Inner diameter	Φ54mm	Active Force	5.5kw
	Maximum thickness	100mm	Hydraulic Power	2.2kw-4
Spindle Inclination Angle	±3°		Weight	1800kg±50kg
Spindle Center Distance	170-240mm		Dimensions	1600×1550×1445mm
