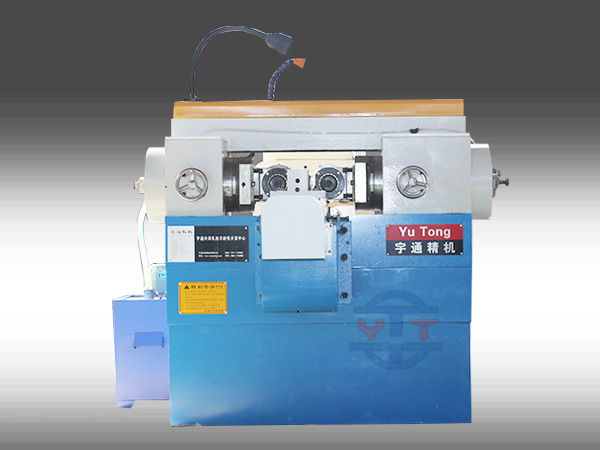

ZP28-15 Type Rolling Mill Machine

Product

ZP28-15 Type Rolling Mill Machine

Product characteristics of ZP28-15 spline rolling mill: This machine is mainly used for small modulus involute splines. Precision cold forming and rolling of high precision external thread workpiece can be widely used in automobile, motorcycle, aerospace machinery and other industries.

产品描述

Processing Range	Φ5-Φ42mm	Workpiece Modulus	0.2-1mm
Maximum Rolling Pressure	150KN	Spindle Speed	Stepless Speed Adjustment
Diameter	Φ130-170mm	Spindle Inclination Angle	±5°
Outer diameter of roller	178mm	Feed Distance	0-12mm
Inner diameter of roller	54mm	Machine Center Height	900mm
Thickness of roller	120mm	Total Power	7.7kw
Maximum Spindle Center Distance	240mm	External Dimensions	1500×2300×1500mm
Total Weight	1800kg±50kg
